Two Stage Screw Air Compressor VFD Series

Powerful Performance with the Efficiency

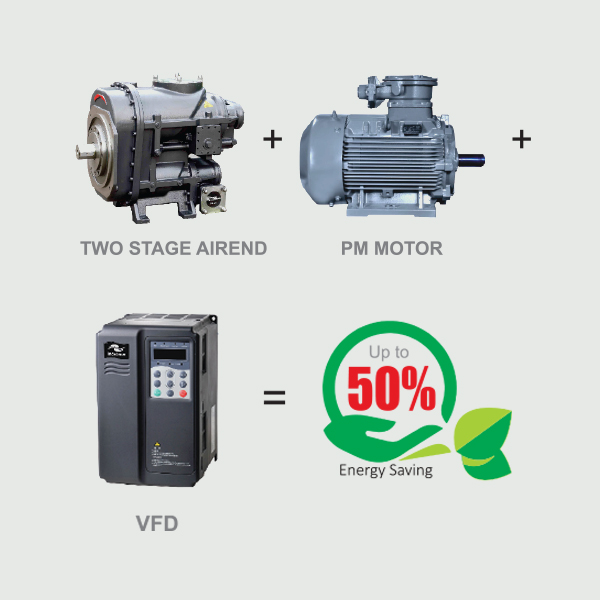

2 stage Air End, 4 Rotors Larger, Lower RPM, Reduce Compressed Ratio, Better Efficiency.
The Permanent Megnet Field excited Motors Over Electromagnetically-excited Motors include : Higher Efficiency Since No Electrical Energy is Used Or Losses incurred For Developing Or Maintaining The Motor Magnetic Field.
On average up to 35% energy saving.
Higher Torque And Power Density, and Reduce Idle time of Compressor.
Better Dynamic Performance Due To Higher Magnetic Flux Density in Air Gap.
Better Power Factor Compared To Induction Motor.

TWO STAGE SCREW AIR COMPRESSOR VFD SERIES

Model	Power		Flow CFM				Sound DBA	Dimensions L x W x H	Output Connection
Model	HP	KW	5 Bar	7 Bar	8 Bar	10 Bar	Sound DBA	Dimensions L x W x H	Output Connection
TPV-22	30	22	215	158	151	120	68±2	1300 x 785 x 1185	1 ¼”
TPV-30	40	30	272	240	218	165	72±2	1570 x 895 x 1295	1 ½”
TPV-37	50	37	335	264	261	211	72±2	1620 x 940 x 1355	1 ½”
TPV-45	60	45	406	353	303	225	72±2	1620 x 940 x 1355	1 ½”
TPV-55	75	55	511	462	434	356	75±2	2045 x 1250 x 1705	2”
TPV-75	100	75	670	586	547	480	75±2	2045 x 1250 x 1705	DN 65
TPV-90	125	90	833	727	706	575	75±2	2340 x 1480 x 1820	DN 80
TPV-110	150	110	995	864	811	709	78±2	2568 x 1620 x 1985	DN 100
TPV-132	175	132	1235	1059	988	850	78±2	2568 x 1620 x 1985	DN 100
TPV-160	200	160	1482	1235	1164	1059	78±2	3300 x 2050 x 2150	DN 125
