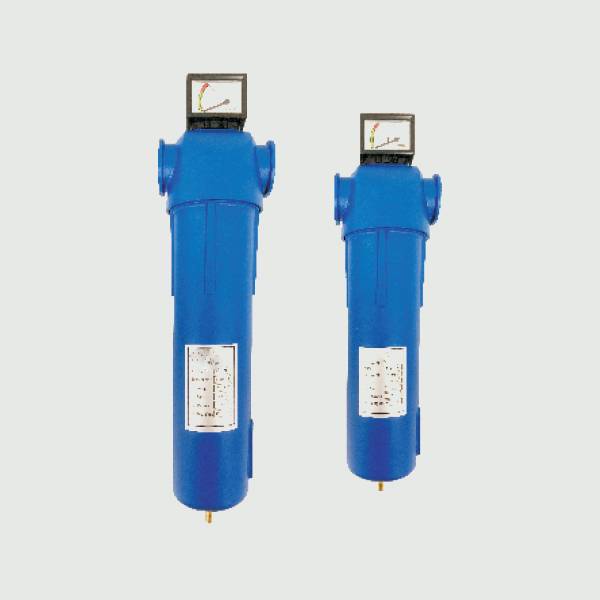

CLEAN AIR SERVICES PREMIUM FILTER SERIES
Working Principle
Coalescing is a continuous natural process in which oil, water and solid particles that pass through the filter element come into contact with a fiber strand and unite with other collected aerosol to form droplets. The droplets fall to the bottom of the housing and are drained away.
- High quality aluminum construction
- Differential pressure gauge
- Automatics internal float drain
- Captive piston type O-ring annular seal
CLEAN AIR SERVICES PREMIUM FILTER SERIES
| Model | Element Grade | Pipe Size (BSP) |
Flow Rate (Cfm @ 7 Bar) |
Max Working |
|---|---|---|---|---|
| T-060 | P, Y, A | ½” | 60 | 16 |
| T-100 | ¾” | 100 | 16 | |
| T-150 | 1” | 150 | 16 | |
| T-265 | 1 ½” | 265 | 16 | |
| T-400 | 2” | 400 | 16 | |
| T-500 | 2” | 500 | 16 | |
| T-600 | 2” | 600 | 16 | |
| T-800 | 2” | 800 | 16 | |
| T-900 | 3” | 900 | 16 | |
| T-1450 | 3” | 1450 | 16 | |
| T-1630 | 4” | 1630 | 16 |
| Description | Element Grade | ||
|---|---|---|---|
| P | Y | A | |
| Filter Element | Borosilicate | Borosilicate | Activated Carbon |
| Housing | Extruded Aluminum Alloy | ||
| Particle Removal | 5 Micron | 0.01 Micron | 0.01 Micron |
| Max. Oil Carry Over (mg/m³) | 5 | 0.01 | 0.003 & Remove Odour |
| Max. Working Pressure | 16 Bar | 16 Bar | 16 Bar |
| Max. Working Temperature | 80°C | 80°C | 80°C |
| Initial Pr. Loss | 0.03 Bar | 0.1 Bar | 0.06 Bar |
| Pr. Drop for Element Change | 0.4 Bar | 0.4 Bar | 0.4 Bar |
*Precede type A with type P & Y
Correction Factor
| Pressure (Bar) | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 20 |
| Correction Factor | 0.65 | 0.85 | 1.00 | 1.13 | 1.25 | 1.36 | 1.46 | 1.56 | 1.7 |
