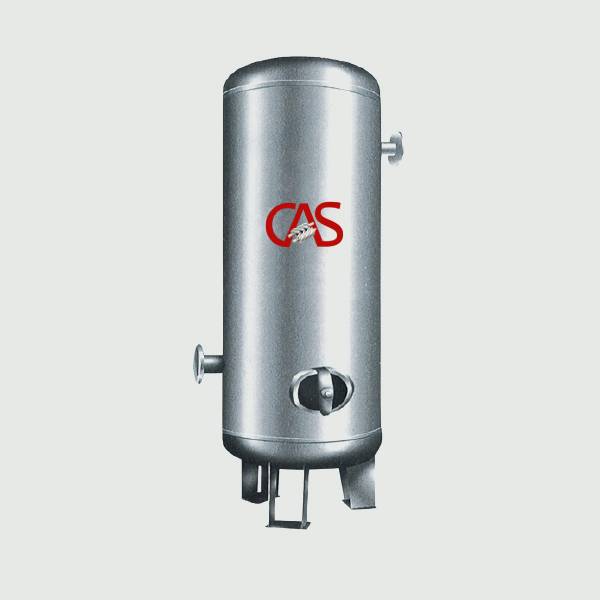

AIR RECEIVER TANK
CLEAN AIR SERVICES Air Receiver is engineered to handle the stress of fluctuating air demands, reduce wear and tear and increase the life of the end use equipment.
The CLEAN AIR SERVICES vertical air receiver manufacturing in accordance with IS2825, ASME section VIII Division 1 design code. Material of construction for shell and dish end will be IS 2062 (optional material SA516 GR.70, IS2002, SS 304/316). The air receiver supplied with complete inside anti corrosion black bitumen & epoxy primer with epoxy grey painted.
Accessories
safety valve, pressure gauge, drain valve will be supplied with tank as standard.Dimensions are approximate. / Air receivers of higher capacities are available on request.Due to continuous engineering improvements, technical specifications are subject to change without prior notice.
CLEAN AIR SERVICES AIR RECEIVER TANK
| Model | Capacity | Max. Working Pressure (Bar g) | Thickness (mm) | Dimensions (mm) | |||
|---|---|---|---|---|---|---|---|
| Ltr | M³ | Shell | Dish End | Height | Dia. | ||
| VA 050 | 500 | 0.5 | 12.5 | 6 | 6 | 2080 | 610 |
| 16 | 8 | 8 | |||||
| VA 100 | 1000 | 1 | 8.5 | 6 | 8 | 2350 | 762 |
| 12.5 | 8 | 10 | |||||
| VA 150 | 1500 | 1.5 | 8.5 | 6 | 8 | 2350 | 914 |
| 12.5 | 8 | 10 | |||||
| VA 200 | 2000 | 2 | 8.5 | 6 | 8 | 2730 | 1040 |
| 12.5 | 8 | 10 | |||||
| VA 300 | 3000 | 3 | 8.5 | 8 | 10 | 2570 | 1320 |
| 12.5 | 10 | 10 | |||||
| VA 500 | 5000 | 5 | 8.5 | 8 | 10 | 3805 | 1320 |
| 12.5 | 10 | 12 | |||||
