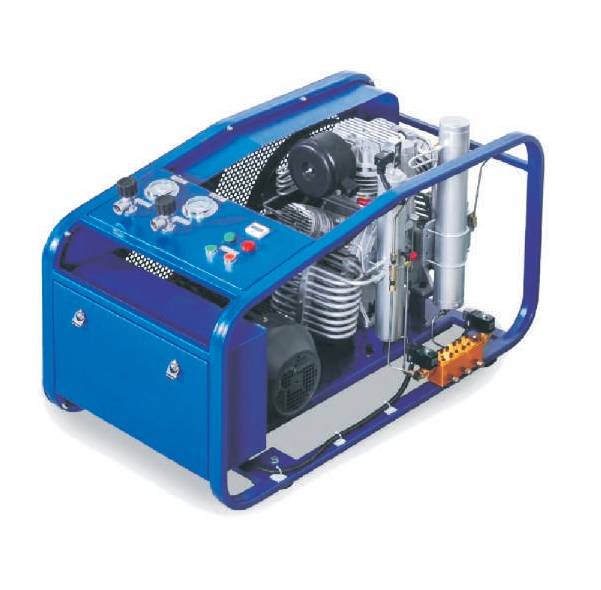

HIGH PRESSURE AIR FILLING PUMP
- It is applicable to firefighting, underwater breathing, CSEI and other fields.
- It dose not require installation and takes small space because of its compact structure.
- It enables simple operation, reliable operation and easy maintenance.
- Automation control system, automatic sewage discharge system(optional).
- The air quality meets the standerd for breathing air. EU EN 12021.
- It has passed EU EN 12021 Certification and ISO 9001 Quality system Certification.
HIGH PRESSURE AIR FILLING PUMP
| Model |
BA - 12 |
BA - 12-G |
BA - 18 |
BA - 18-G |
BA - 24 |
BA - 24-G |
| Rated Discharge Volume |
200 |
200 |
300 |
300 |
400 |
400 |
| Rated Discharge Pressure |
30 |
30 |
30 |
30 |
30 |
30 |
| Compression Stage |
3 |
3 |
3 |
3 |
3 |
3 |
| Drive Mode |
Three-phase motor 380V/50HZ |
Honda Gasoline engine |
Three-phase motor 380V/50HZ |
Honda Gasoline engine |
Three-phase motor 380V/50HZ |
Honda Gasoline engine |
| R.P.M. |
1100 |
1100 |
1250 |
1250 |
1360 |
1360 |
| Motor Power |
4 |
6.6 |
5.5 |
9.5 |
7.5 |
9.5 |
| Horse Power |
5.5 |
8.9 |
7.5 |
12.8 |
10 |
12.8 |
| Weight |
155 |
160 |
170 |
180 |
190 |
195 |
| Boundary Dimension |
1100x600x720 |
1100x600x720 |
1200x600x720 |
1200x600x720 |
1200x600x720 |
1200x600x720 |
| Gas Supply Port |
G 5/8 |
G 5/8 |
G 5/8 |
G 5/8 |
G 5/8 |
G 5/8 |
