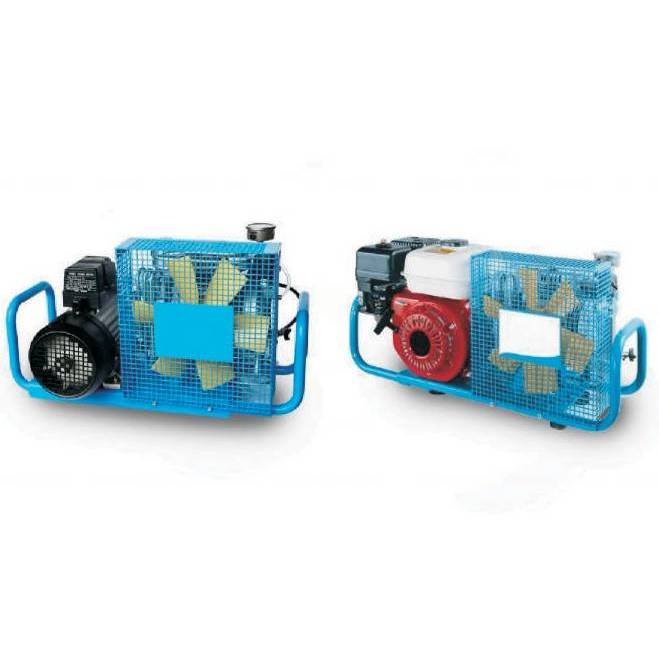

AIR CHARGING PUMP FOR BREATHING APPARATUS FOR FIRE FIGHTING(I)
- Portable micro high-pressure air compressor.
- It is applicable to firefighting, underwater breathing, CSEI and other fields.
- It dose not require installation and takes small space because of its compact structure.
- It enables simple operation, reliable operation and easy maintenance.
- Automation control system, automatic sewage discharge system(optional).
- The air quality meets the standerd for breathing air. EU EN 12021.
- It has passed EU EN 12021 Certification and ISO 9001 Quality system Certification.
AIR CHARGING PUMP FOR BREATHING APPARATUS FOR FIRE FIGHTING(G)
| Model |
BA - 100IS |
BA - 100I |
BA - 100IG |
| Rated Discharge Volume |
100 |
100 |
100 |
| Rated Discharge Pressure |
30 |
30 |
30 |
| Compression Stage |
4 |
4 |
4 |
| Drive Mode |
Single-phase motor 220V/50HZ |
Three-phase motor 380V/50HZ |
Honda four-stroke gasoline engine |
| R.P.M. |
2300 |
2300 |
2300 |
| Motor Power |
2.2 |
2.2 |
4 |
| Horse Power |
3 |
3 |
5.5 |
| Weight |
45 |
48 |
45 |
| Boundary Dimension |
650x360x370 |
680x385x418 |
800x392x415 |
| Gas Supply Port |
M16*1.5 |
M16*1.5 |
M16*1.5 |
