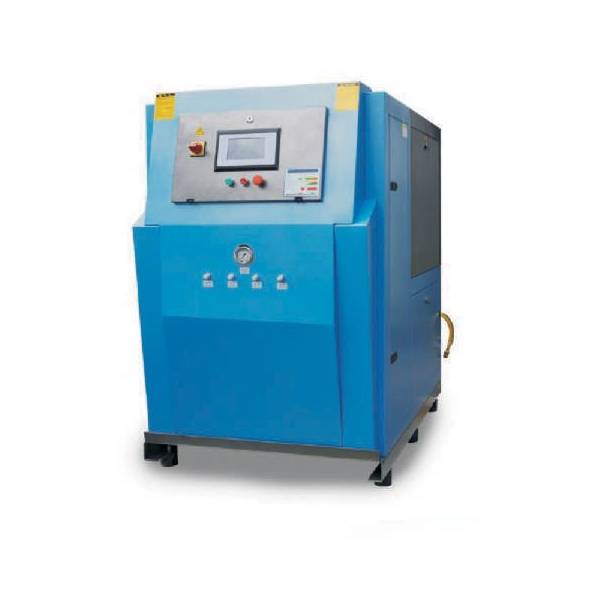

AIR CHARGING PUMP FOR BREATHING APPARATUS FOR FIRE FIGHTING
- It is applicable to firefighting, underwater breathing, CSEI and other fields.
- It dose not require installation and takes small space because of its compact structure.
- It enables simple operation, reliable operation and easy maintenance.
- Automation control system, automatic sewage discharge system(optional).
- The air quality meets the standerd for breathing air. EU EN 12021.
- It has passed EU EN 12021 Certification and ISO 9001 Quality system Certification.
AIR CHARGING PUMP FOR BREATHING APPARATUS FOR FIRE FIGHTING(G)
| Model |
BA 680 |
BA 720 |
BA 810 |
| Rated Discharge Volume |
680 |
720 |
810 |
| Rated Discharge Pressure |
33 |
33 |
33 |
| Compression Stage |
4 |
4 |
4 |
| Drive Mode |
Three-phase motor 380V/50HZ |
Three-phase motor 380V/50HZ |
Three-phase motor 380V/50HZ |
| R.P.M. |
1220 |
1250 |
1320 |
| Motor Power |
15 |
15 |
18.5 |
| Horse Power |
20 |
20 |
25 |
| Weight |
680 |
680 |
700 |
| Boundary Dimension |
940x1410x1670 |
940x1410x1670 |
940x1410x1670 |
